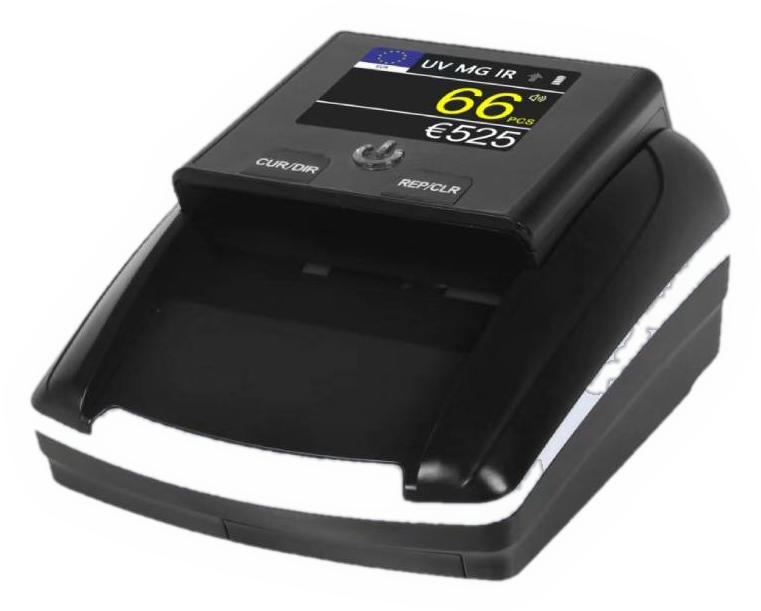

MicroPOS DLN banknote detector

Technical specifications

Model

MicroPOS detektor validation and Banknote counter

Interface

Firmware se can azurirati putem interfaces USB (can biti potrebno for nove aporene banknotes or druge currency)

Power supply

AC: 100 V - 240 V 50/60 Hz, DC: 12 V / 1.0 A. Optional rechargeable lithium battery 11.1 V / 500 mAh. Power consumption below 10 W.

Dimensions and weight

155 x 137 x 82 mm, 0.5 kg

Options

Banknote validation using magnetic detection, infrared light, paper quality, size and thickness checks. Shows banknote count and total value by currency. Optional rechargeable lithium battery for portable use.

Note

A precision device that requires occasional maintenance. - Periodically check the supply voltage to ensure it remains within the allowed range. - Place the device in a well-ventilated area and do not expose it to sunlight or magnetic fields. - Clean the sensors periodically using cotton wool moistened with alcohol. Clean the rollers and rubber belt. Do not damage sensors with sharp or hard objects. - Do not attempt to disassemble the device.

Screen

Thin-film-transistor liquid-crystal display (TFT LCD) provides high contrast and better readability of amounts and banknote counts
