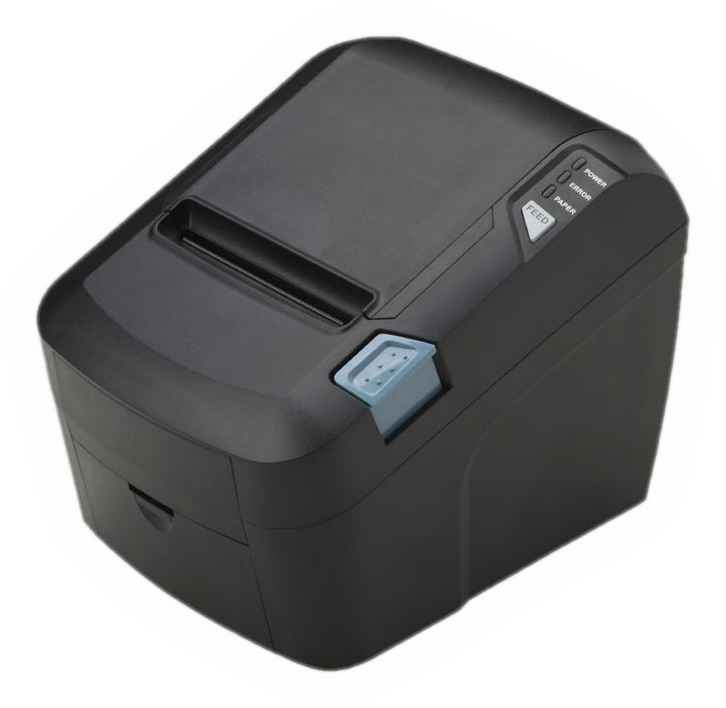

MicroPOS WTP 100+ thermal POS printer

Technical specifications

Model

WTP 100+ - black direct thermal POS printer

Interface

- Paralelno Centronics (IEEE-1284) and USB - connector RJ-11 for drawer

Resolution

180 dpi

Power supply

- External power adapter (included in the standard package) - Input: 220 V, 60 Hz - Output: 24 V, 2.5 A

Dimensions and weight

155,8 x 203,3 x 154,9 mm 1.7 kg

Printing

Direct thermal printing on thermal paper with synchronized paper output. Effective print width depends on the model.

Other

Thermal paper support, paper-end sensor and automatic cutter where included. Reliability, roll size and cutter lifetime depend on the model specification.

Font size

Dot size: 0.141 mm x 0.141 mm / 0.125 mm x 0.125 mm

Print speed

300 mm/sek

Options

software for configuration device

Note

ESC/POS compatible printer emulation. Windows code page support depends on driver and firmware configuration. Interface cables that are not listed as included must be purchased separately.

Barcode printing

1D bar kodovi: Code 11, Code39, Code 93, Codebar,ISBT-128, UPC-A, UPC-E, EAN-8. EAN-13, Code128 with subsets A/B/C, Interleaved 2-of-5 2D bar kodovi: PDF417, QR Code, DATA MATRIX
